全自動鋸床，也可以半自動操作，雙軸數字控制，可編程操作，可進行0°至左60°多角度鋸切；

---伺服電磁閥自動調節鋸弓進給速度，保證鋸條始終處于最佳切割狀態，可節省鋸條25%~30%

---德國BUCHER的液壓泵和意大利DUPLOMATIC電磁閥保證長時間工作的可靠性

---單次最大送料長度500mm, 可以多次重復送料

---可旋轉式操控臺便于操作者在每一個不同的位置操作鋸床

---最新一代MEP設計的雙軸微處理器控制

---電子控制油缸，精確調節鋸弓上下限位

---數字顯示診斷/報警/輸入出狀態/鋸切時間/鋸條線速度/鋸弓位置/鋸切數量

---變頻器連續控制鋸條轉速（15~100米/分）

--- CNC為步進馬達控制送料，AXI為高精度油缸控制送料

---選配件：成捆切割可以選配集束卡鉗裝置(最大切割范圍：330x155mm)

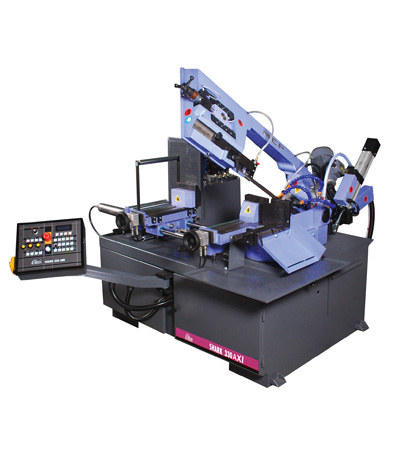

Automatic, electro-hydraulic band sawing machine which can operate also in semiautomatic cycle for cutting from 0° to 60°left.

---Console with all centralized controls, installed on an articulated arm to follow the operator in every operating position for the controls and the EMERGENCY

--Automatic adaptive shearing stress control system with servovalve mounted on the cylinder

---Machine with double axis microprocessor with the latest controllers designed by Mep.

---Latest generation hydraulic control unit, with high efficiency and low energy consumption

---Electronic transducer to visualize band tensioning

--- The limits of the head stroke are programmed through the control board

---Display for the following messages: ▲Diagnostic ▲Alarms▲Input and output status▲Cut counting ▲Time spent for the cut made ▲Blade speed▲the head position

---Electronic inverter for the continuous adjustment of the band speed from 15 to 100 m/min

---CNC feeder operated by stepper motor with ball screws, AXI feeder operated by the hydraulic cylinder ( feed in length in one stroke: 500mm )
